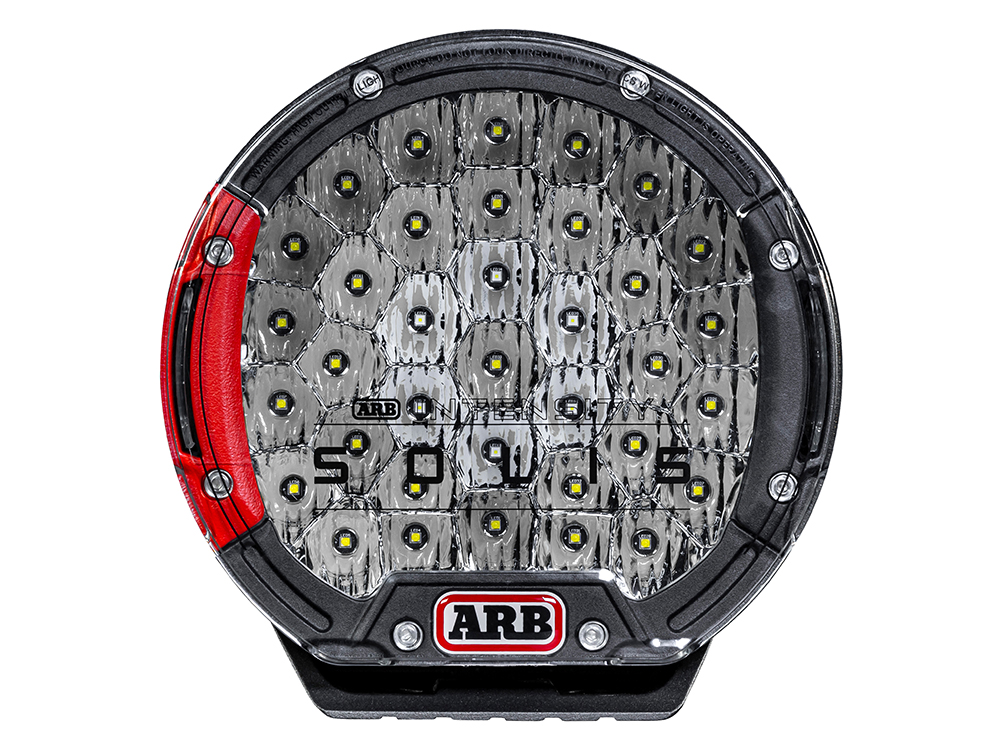

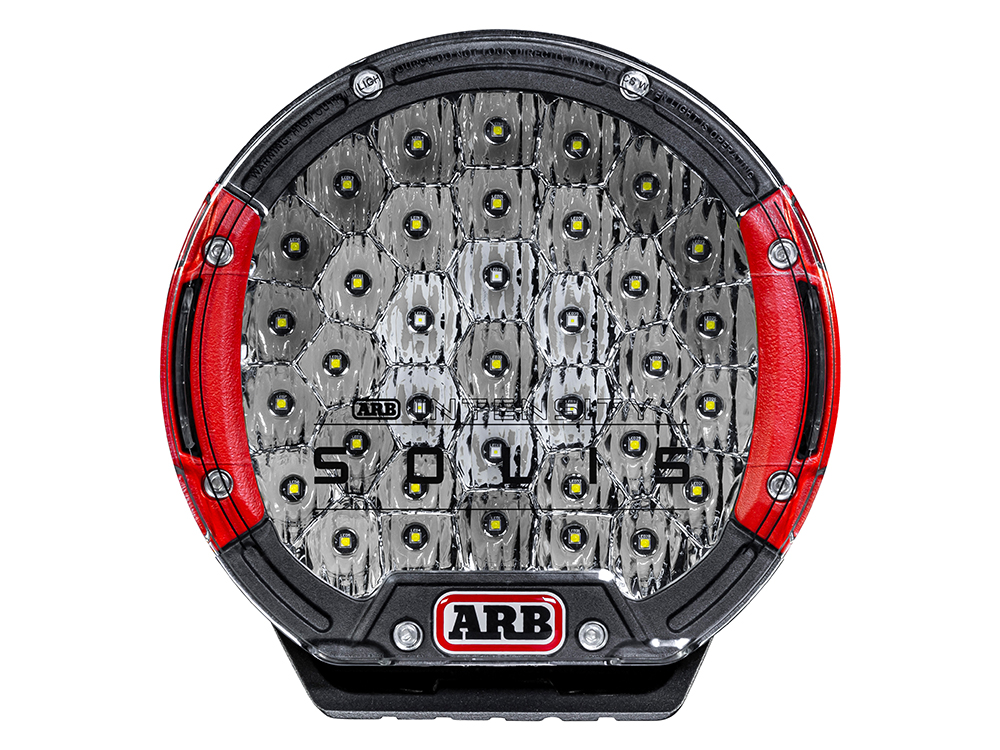

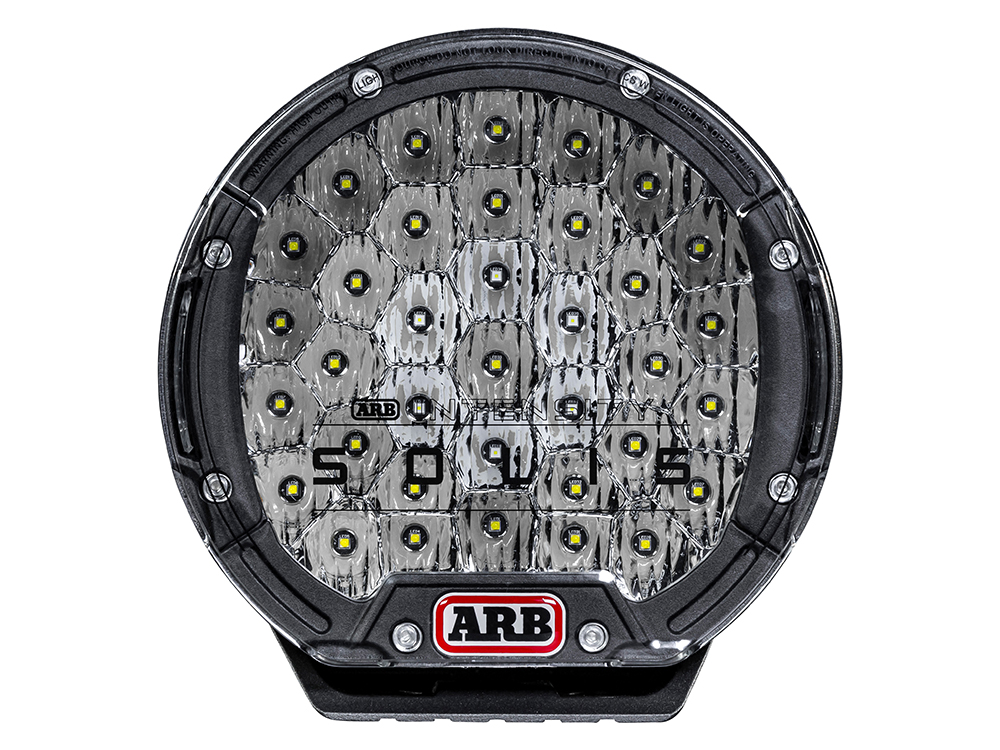

ARB Intensity Solis 36 Flood Light

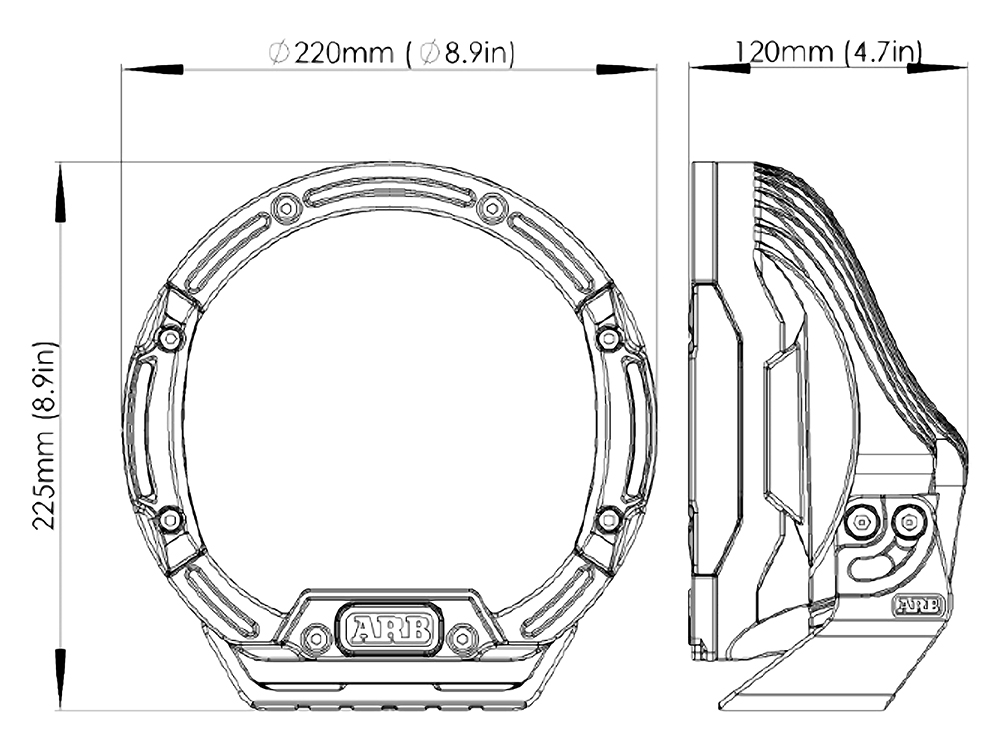

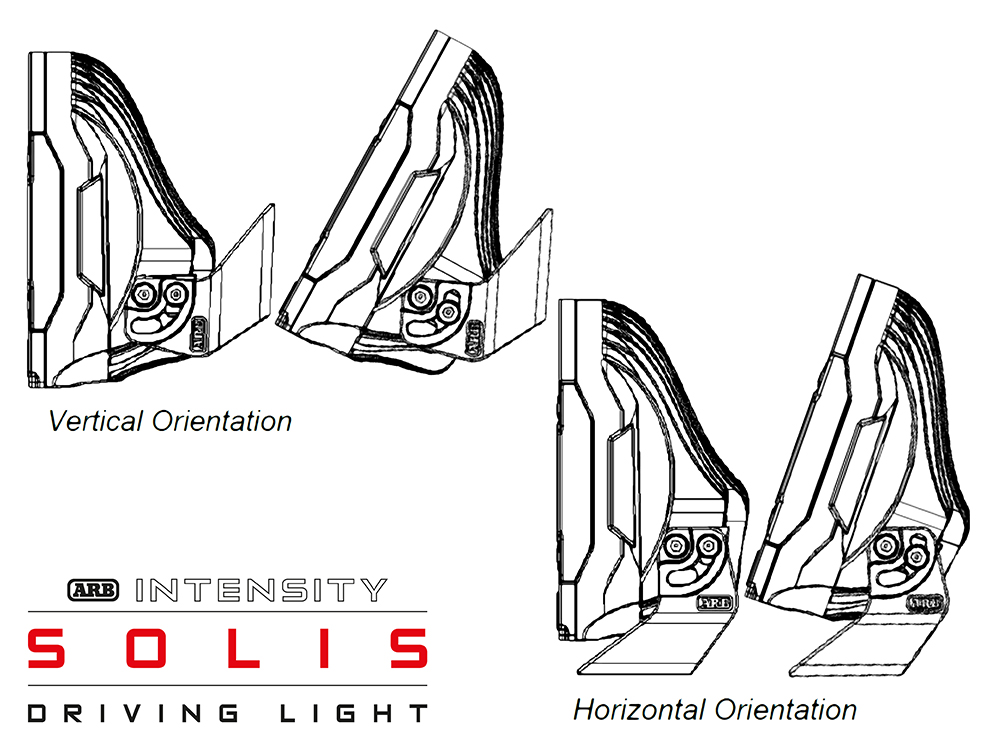

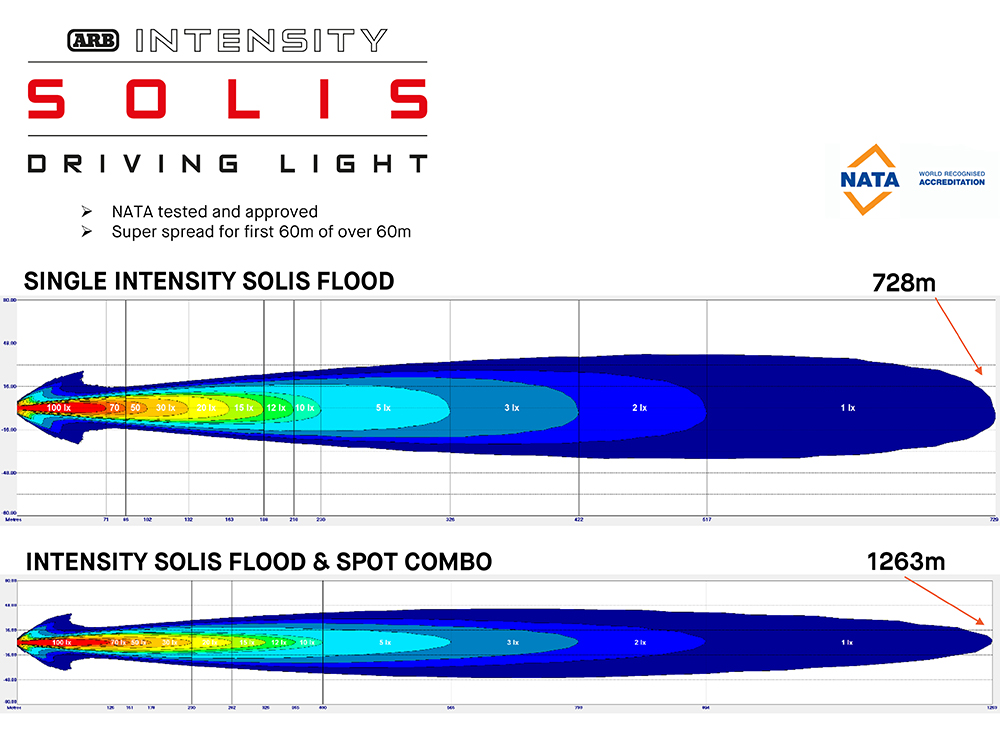

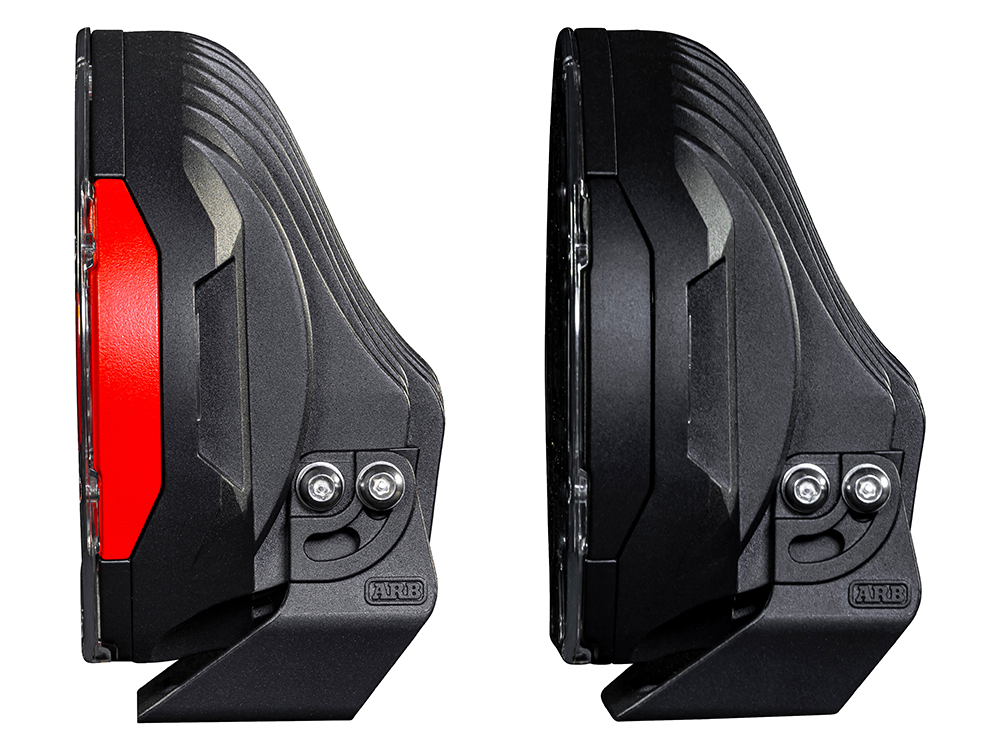

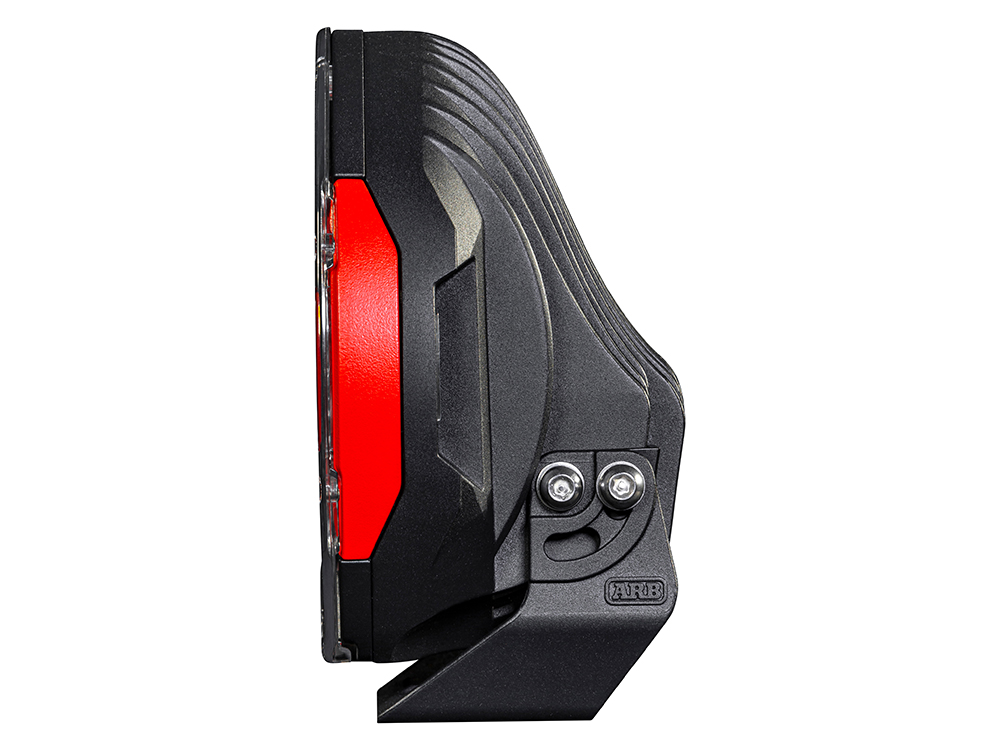

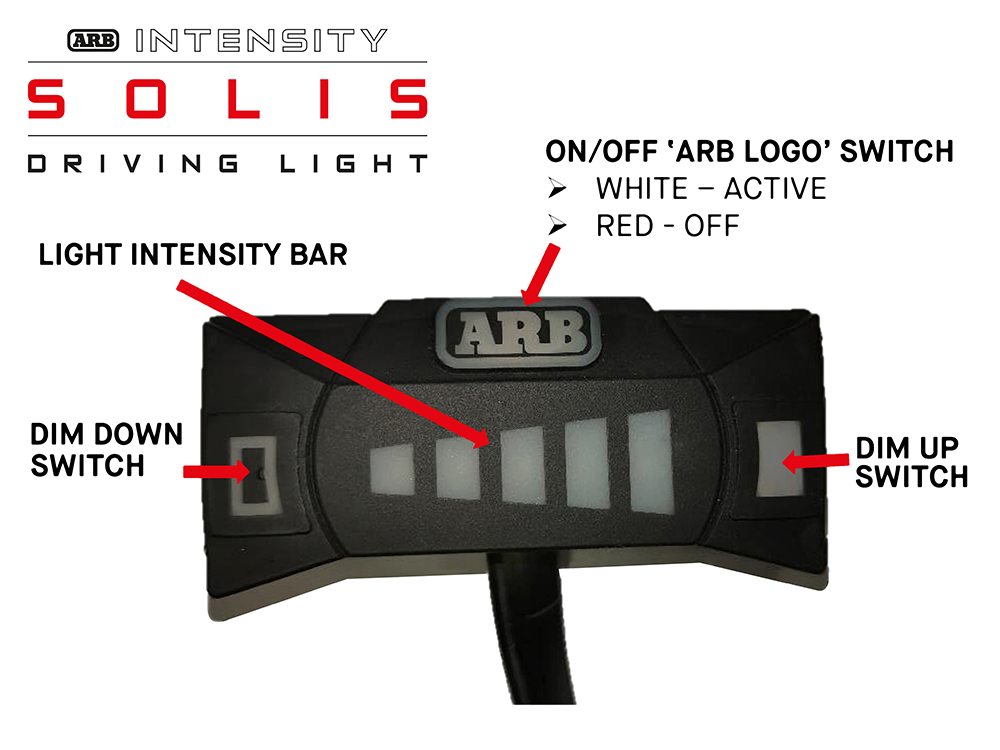

The ARB Intensity Solis provides a whole new level to the ARB Intensity range of driving lights and bars. Introducing digital dimming control and providing a massive 1 lux @ 1,032m for an individual spot beam via the 30 x 4W combined with 6 x 10W high output OSRAM LEDS provides a smooth driving beam. Revolutionary update of the Intensity light New colour design and shape New inter-changable bezels Superior grade LEDs and electronics Digital dimming control Unique ARB engineered reflectors Input - 10 - 30V Power - 165W Current draw - 12.4A @132.V Output - raw - 18,178 lumens Output - effective - 8,333lumens 1 Lux reading - 729m Spread - 11 degrees Input cable length - 450mm Operating temperature - -40•C to +65*C Colour temperature - 5,700 Kelvin Weight - 3.3kg Connector - 4-pin AT waterproof plug Dimensions (W x H x D) - 225 x 220 x 120mm High Pressure Die Cast Aluminium Bracket & Housing Scalloped back - more bar fitment possible Improved heatsink and UV stabilization Adjustable bracket Pressure tested breather Brackets Various mounting options Vertical & horizontal mounting Simplified fitting Torx security fasteners Solis - Touchpad Silicone touch pad Intuitive feel touch - no eyes off the road Simple 3 button control Easy fitment Cable can be directed at back or out bottom Percentage changes - 5%, 25%, 50%, 75%, 100% Silicone sleeved for durability and protection 58mm (L) x 10mm (D) x 25mm The touchpad is required to operate the ARB Intensity Solis™ lights if no LINX system is connected Compatible With Linx Solis can be fully integrated into LINX. The customer will need to purchase a patch lead that is simple to install + set up the new light and its features within the LINX system. Features include custom pre-sets, infinite dimming control, courtesy light feature and dedicated Solis icons and function. Flood light / 36 LEDs / Single

Brand

ARB

Quantity

Single

Sub Type

LED

Type

Driving Light
